🔌 Integrated Cable Infrastructure

PV Cable Systems — Beyond Connectivity

High-performance PV cable infrastructure for reliable energy systems. Integrated connectivity for residential, commercial and utility-scale photovoltaic installations — from rooftop string cable to dedicated battery interconnection cable for large-scale storage.

250,000+ km
Field-Proven Installations
30 Years
Calculated Service Life
72 Months
Manufacturer's Warranty
IEC EN / VDE
Standards Compliant
Request a Quote → Browse Cable Systems

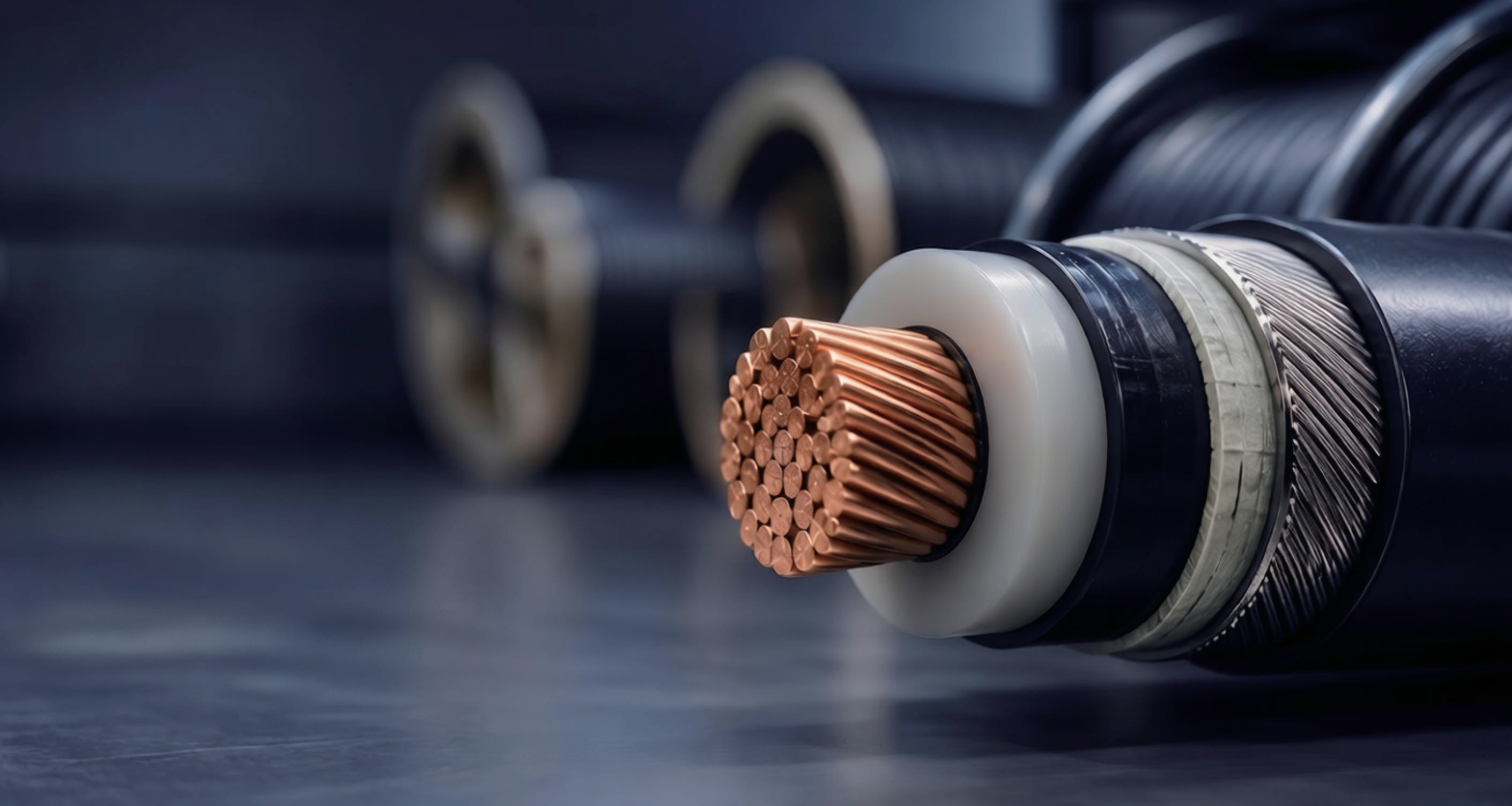

PV cable cross-section showing stranded copper conductor and multi-layer insulation
One Project, Multiple Cable Requirements

Cable Systems for Every Stage of a PV Project

PV systems require different cable functions across generation, distribution and storage. Each application group below lists the cable types matched to that stage of the project.

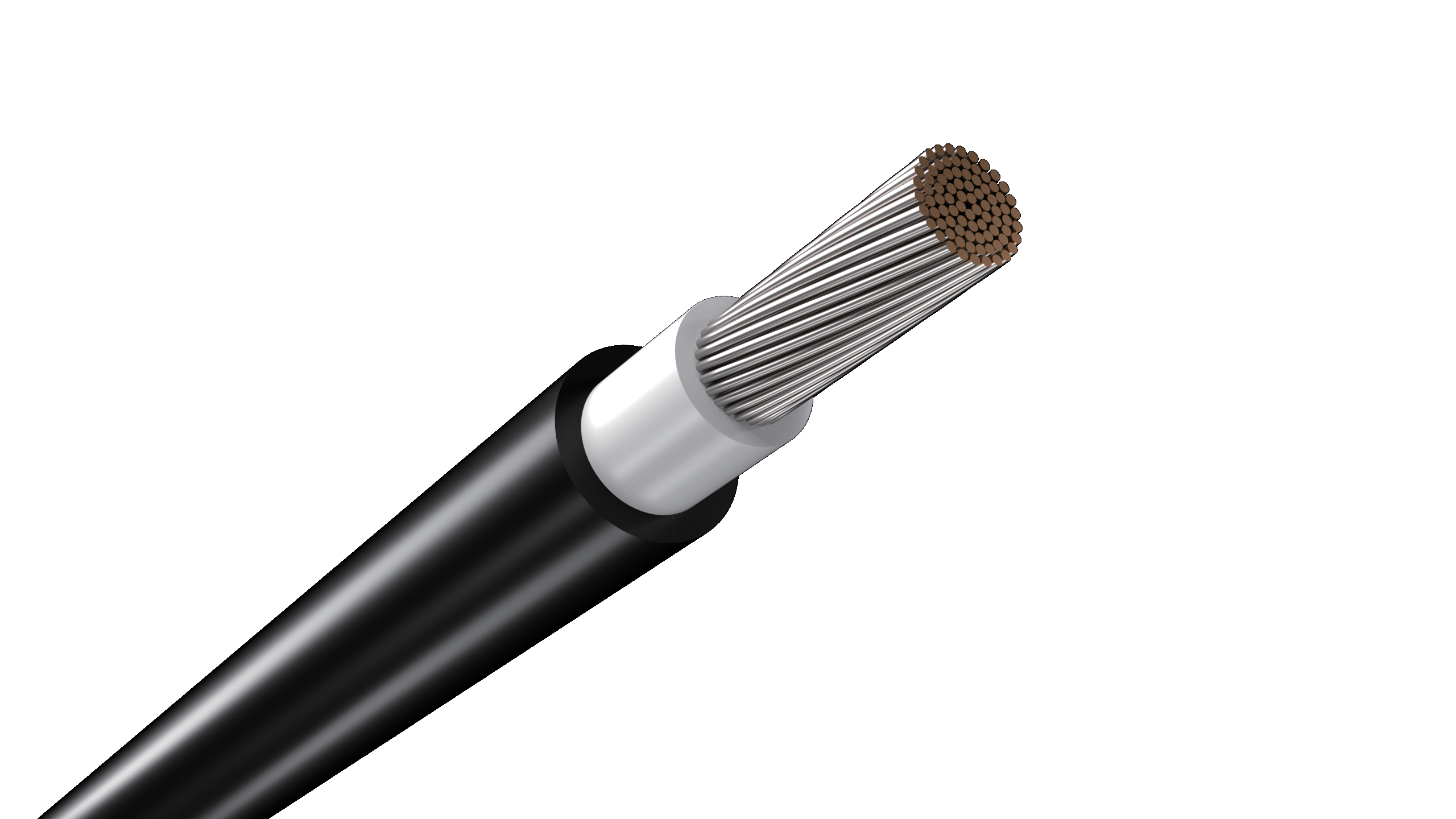

PV string cable cross-section with stranded copper conductor for residential rooftop systems
Residential PV

Rooftop & Residential Systems

Compact layout, high safety requirements, module-to-inverter wiring.

  • H1Z2Z2-K (Eca)PV string connections in rooftop systems
  • H05V-KInverter and control wiring
  • H07V-KInternal installation and grounding conductors
  • N2XHHalogen-free building installation cable

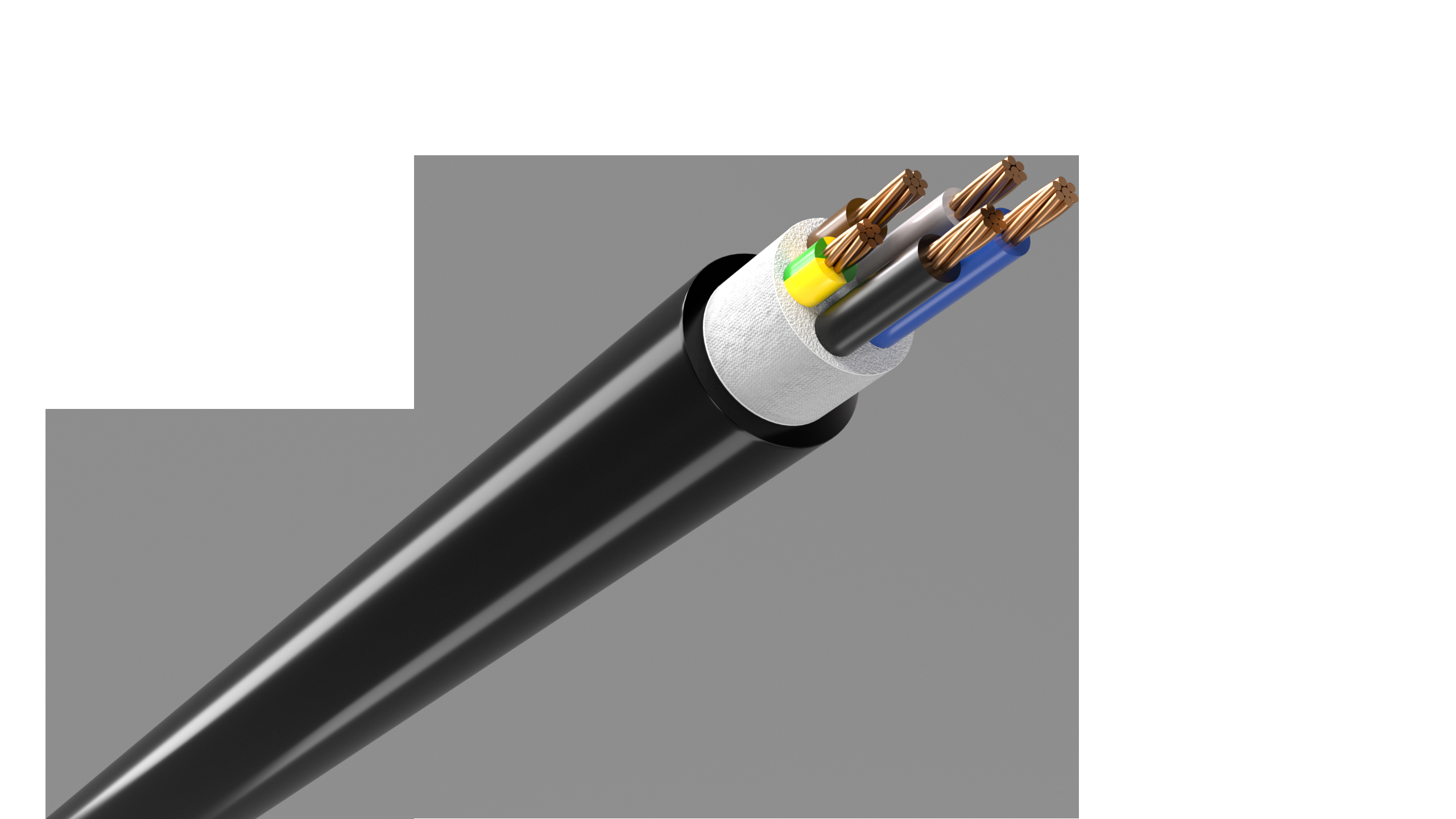

Multi-core PV distribution cable cross-section for commercial and industrial installations
Commercial & Industrial PV

C&I Rooftop & Ground-Mount

High-load installations, complex routing, industrial environments.

  • H1Z2Z2-K (Dca)PV string connections in commercial systems
  • N2XYInverter and distribution cabling
  • NYCYEMC-sensitive power applications
  • NYY-JUnderground power distribution

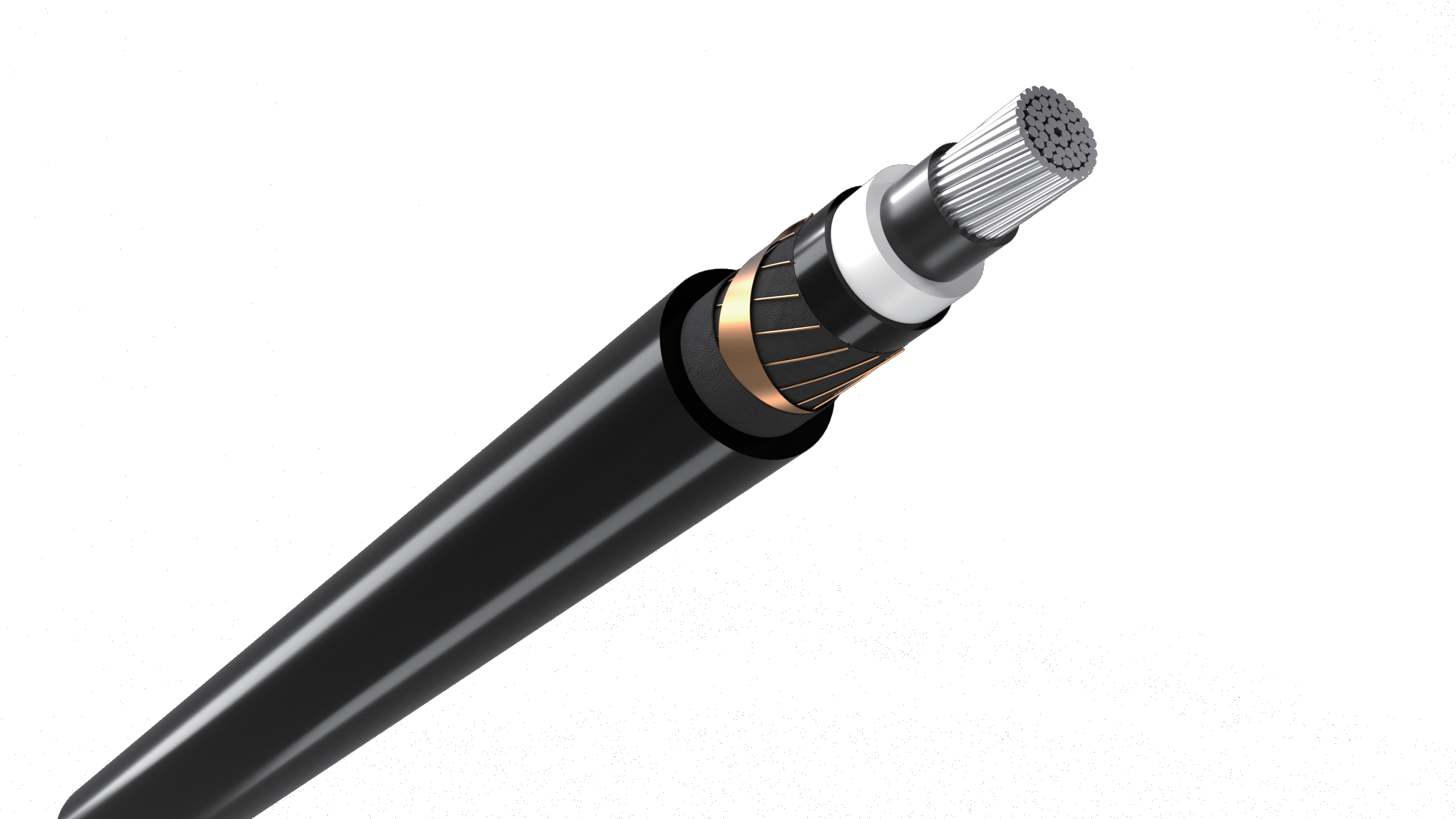

Armored PV cable cross-section with copper shielding for utility-scale solar and battery storage
Utility-Scale PV & BESS

Utility-Scale & Energy Storage

Large-scale PV plants and battery energy storage infrastructure.

  • H1Z2Z2-K (Dca or Cca)Utility PV array connections
  • NA2XHAluminium long-distance power distribution
  • NA2XS(F)2YDedicated DC battery connection cable, systems up to 1.5 kV DC
  • Underground Collector NetworksField cable runs between array sections and substation
One Project, Multiple Requirements

How Cable Needs Shift Across a PV Project

Residential, commercial and utility-scale systems each place different demands on generation, distribution and storage cabling.

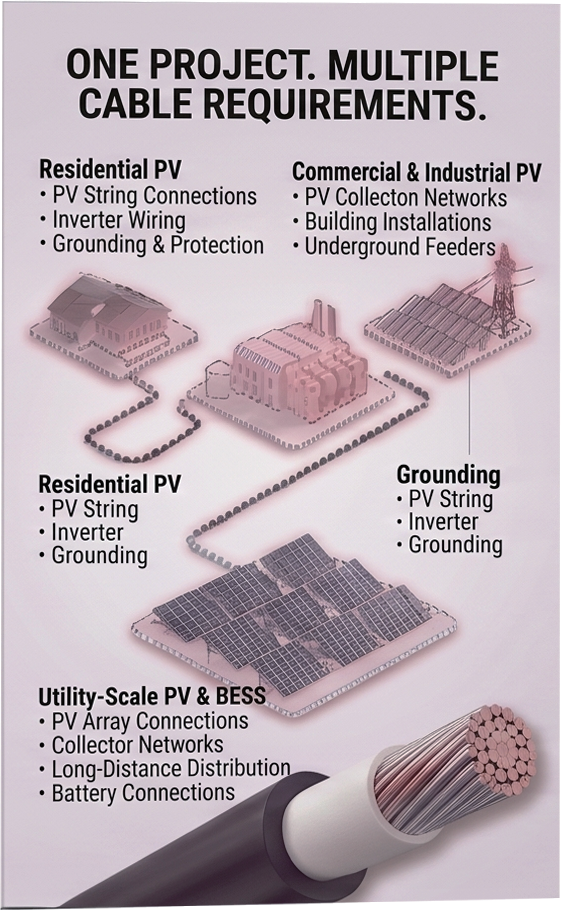

Diagram of PV cable requirements across residential, commercial and industrial, and utility-scale PV and BESS applications
Designed for Reliable Performance

Engineered for Long-Term System Stability

Cable design impacts electrical performance, safety and long-term system stability across the photovoltaic and energy storage lifecycle.

⚡

Electrical Stability Under Load

Consistent power transmission performance across PV string, distribution and battery interconnection duty cycles.

🌡️

Thermal Endurance

Manufactured for stable operation under demanding environmental and electrical conditions.

🔧

Mechanical Flexibility

Supports routing through compact rooftop layouts and complex industrial cable trays alike.

☀️

Outdoor Durability

Long-term outdoor durability for exposed string and array-level connections.

🔍

Product Traceability

Supports compliance, reliability and project-level performance for EPC contractors and installers.

Compliance & Reliability

Standards, Certifications & Field Data

Manufactured in accordance with IEC EN and VDE standards for stable operation under demanding environmental and electrical conditions.

Standards ComplianceIEC EN, VDE
CertificationsTUV, UL, RoHS, REACH, CPR
Field-Proven Installations250,000+ km global installations
Calculated Service Life30 years
Manufacturer's Warranty72 months
Extra Copper Content5% vs. industry standard
Battery Connection Cable RatingUp to 1.5 kV DC (NA2XS(F)2Y)
Selection Guide

Frequently Asked Questions

Answers to the most common PV cable selection questions from EPC contractors, distributors and installers.

Which PV cable is right for a residential rooftop system?
For rooftop residential systems, H1Z2Z2-K (Eca) is the standard choice for PV string connections — it is single-core, double-insulated and rated for outdoor UV exposure. H05V-K handles inverter and control wiring, H07V-K covers internal installation and grounding conductors, and N2XH is used for halogen-free building cable runs.
What do the Eca, Dca and Cca markings on PV cable mean?
Eca, Dca and Cca are reaction-to-fire classifications under the EU Construction Products Regulation (CPR) for cables installed in buildings. Cca and Dca indicate progressively higher fire-performance requirements than Eca and are typically specified for commercial, industrial and utility-scale installations with denser cable runs.
What is the difference between H1Z2Z2-K and H07V-K cable?
H1Z2Z2-K is a halogen-free, double-insulated cable purpose-built for outdoor PV string connections between modules and combiner boxes/inverters. H07V-K is a general-purpose single-insulated conductor used for internal installation wiring and grounding inside enclosures — it is not rated for permanent outdoor PV string exposure.
Can PV cables be installed underground?
Yes. NYY-J is designed for underground power distribution runs on commercial and industrial sites, and utility-scale PV plants commonly use underground collector networks built with NA2XH aluminium distribution cable for long-distance runs between array sections and the substation.
What cable is used for battery energy storage (BESS) DC connections?
NA2XS(F)2Y is the dedicated DC battery connection cable for utility-scale PV and BESS installations, rated for systems up to 1.5 kV DC. It is engineered for the higher insulation and mechanical demands of battery interconnection compared to standard PV string cable.
Are these PV cable systems compliant with international standards?
Yes. The cable systems are manufactured to IEC EN and VDE standards, and the lineup holds TUV, UL, RoHS, REACH and CPR certification. The product family has over 250,000 km of field-proven global installations across residential, commercial and utility-scale PV and energy storage projects.

Need help specifying cable for your project?

Send us your system layout and scale — we respond with cable recommendations and FOB pricing within 24 hours.
